Description
|
item
|
value
|
|
Seats
|
1 – 2
|
|
Fuel Type
|
Electric
|
|
Voltage
|
48V
|
|
Certification
|
ce
|
We accept Sample order.
We will reply to your inquiry in 12 hours.
If you have any further questions about the cart, please feel free to contact us, we will reply you as soon as possible.

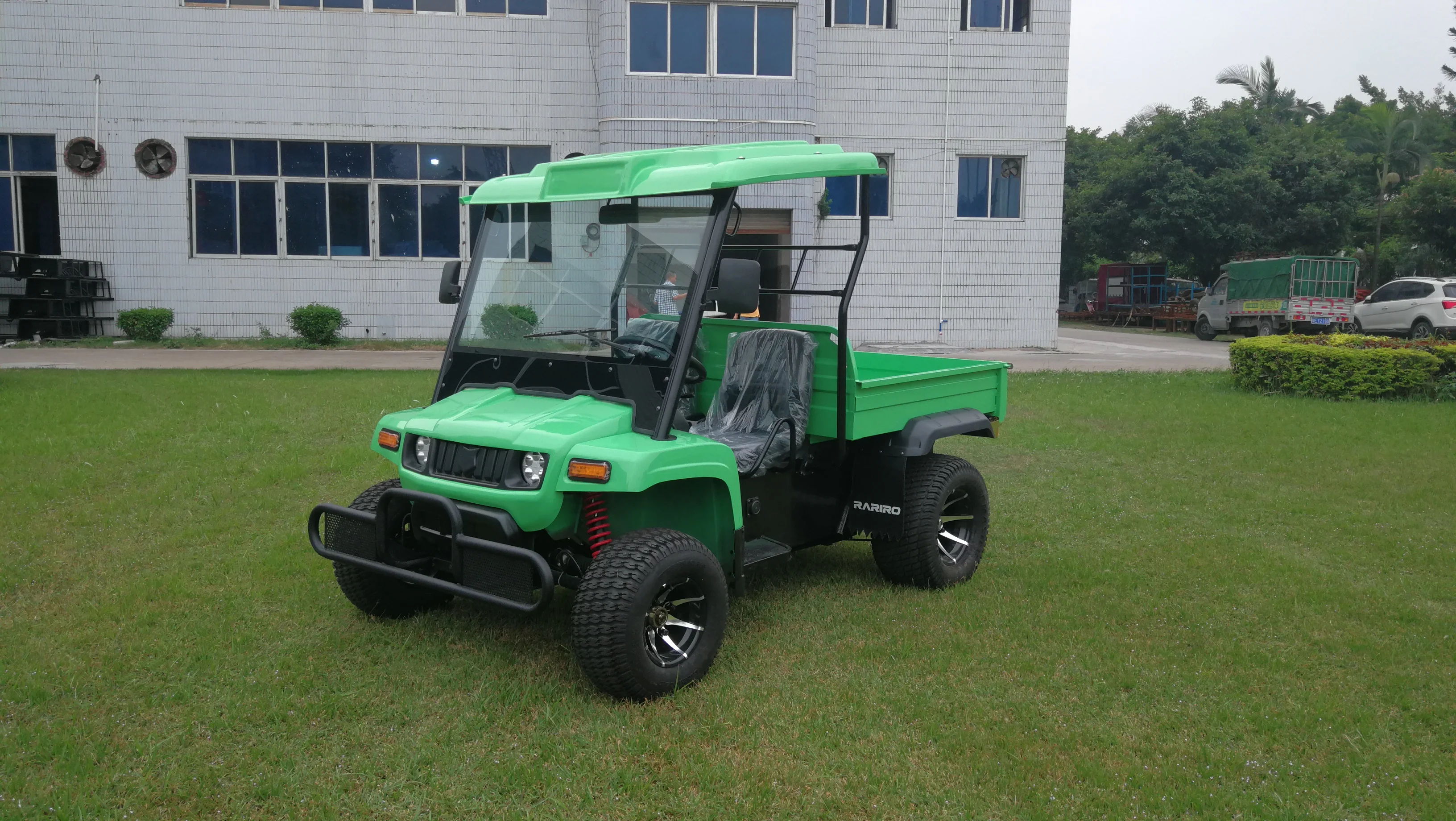

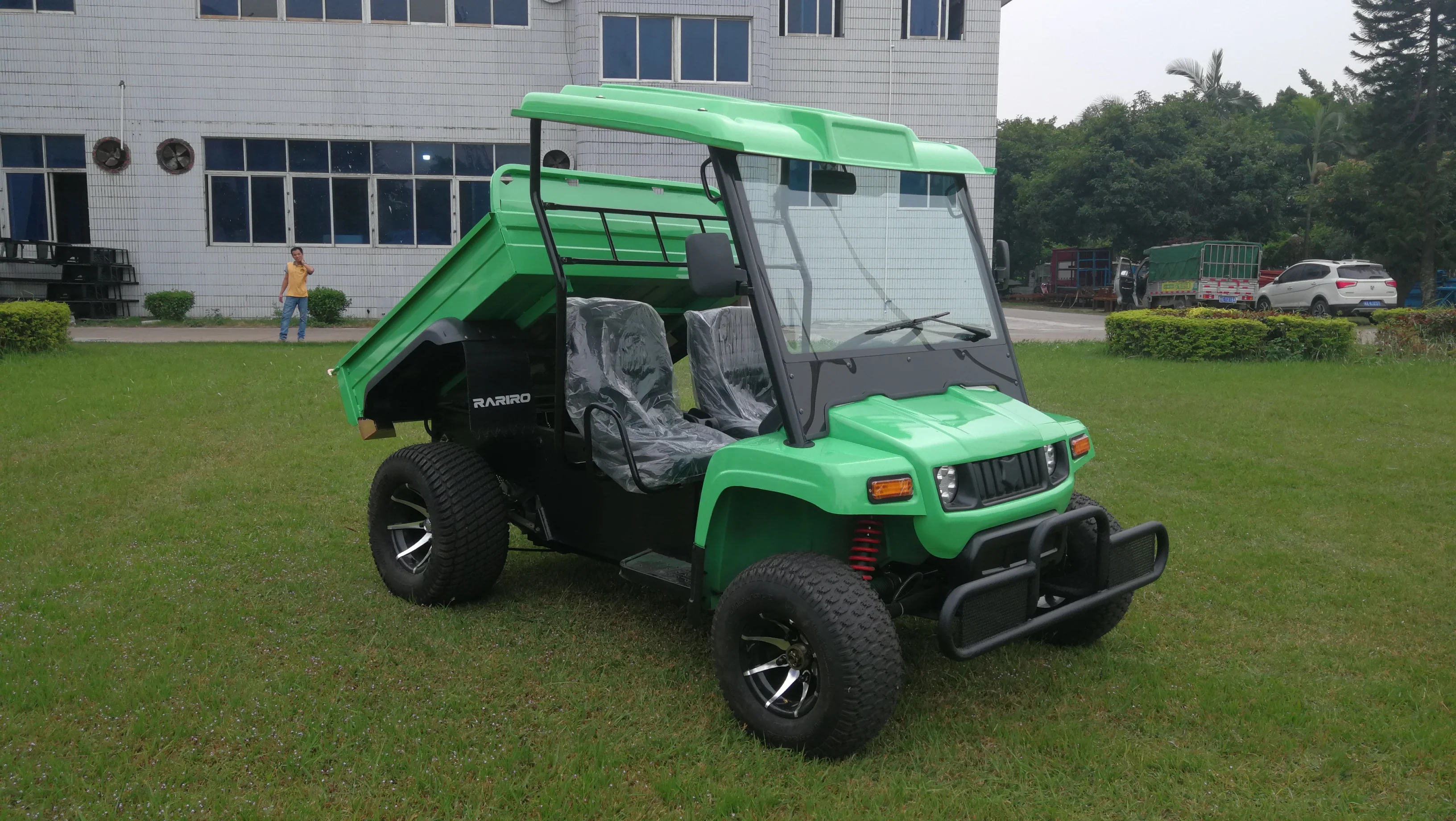

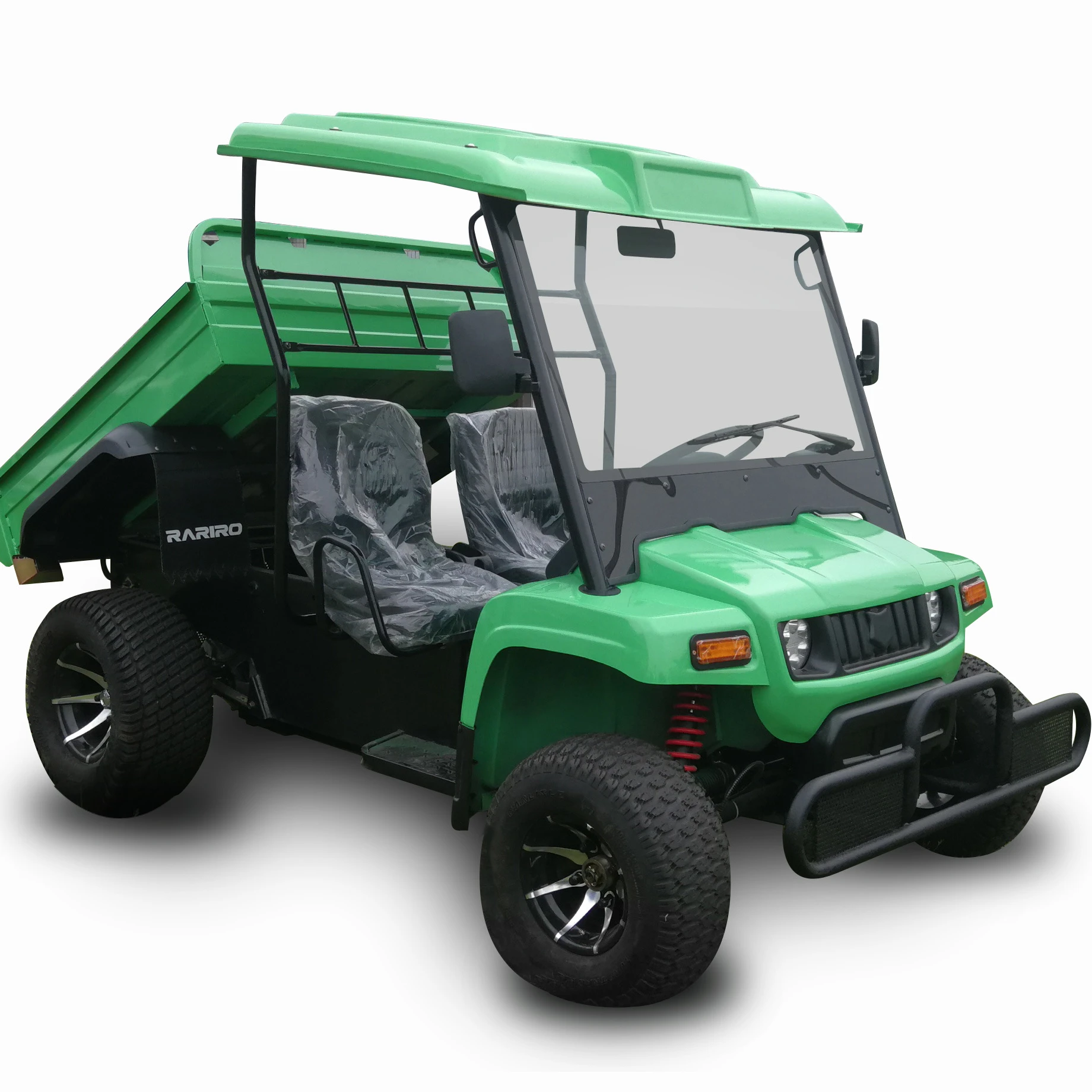

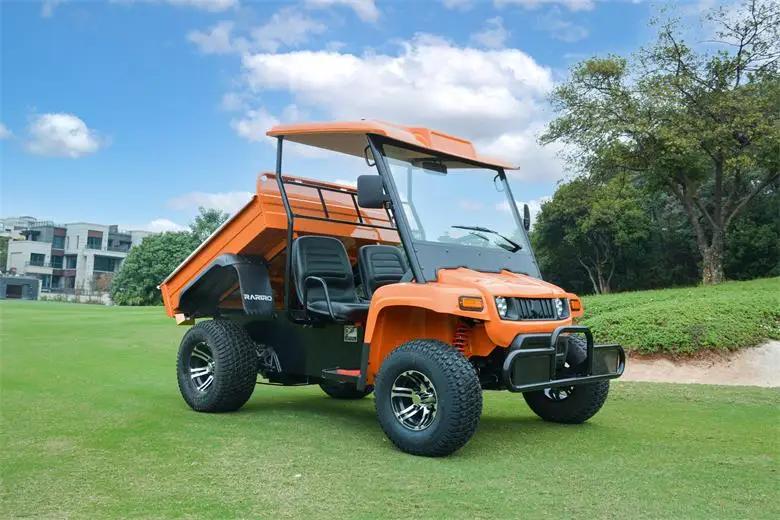

Rariro electric utility vehicle UTV is a sturdy and durable container trucks with multiple functions. It has a nice appearance and is convenient to operate. The vehicle is made with a light truck chassis structure，long cruising range and strong power, therefore it can bear larger loads. Even when driven under bad road conditions, they still can pass smoothly with flexibility. Its cargo box is on a hydraulic lifting platform.
|
Key components
|
||||||||
|
Motor
|
48V/5KW AC Brushless motor
|
|||||||
|
Controller
|
48V/current limit 400A controller
Or USA Curtis controller
|
|||||||
|
Battery
|
QTY 6 PCS- 8V/180AH maintenance-free
Lead-acid battery Or USA Trojan battery
|
|||||||
|
Charger
|
On Board Smart Charging System，
input：110V/220V,50Hz，output 48V,25A
|
|||||||
|
Performance
|
||||||||
|
Passenger Capacity
|
2 seats
|
|||||||
|
Dimensions
|
2750*1150*1185mm
|
|||||||
|

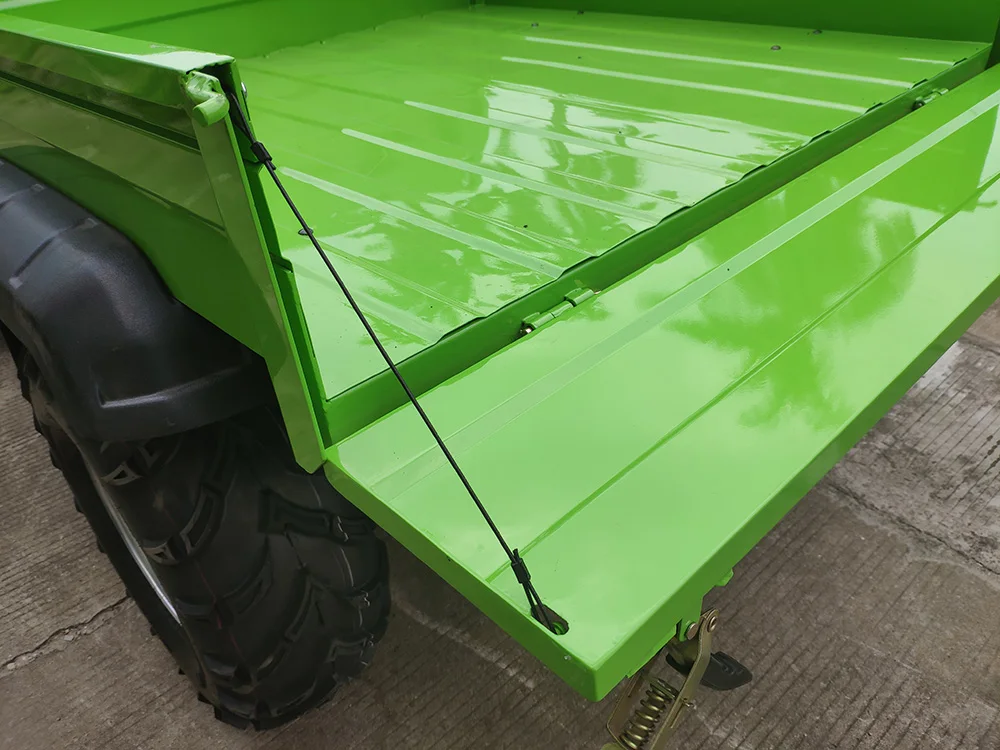

Cargo box Dimensions
|
1200*1280*230mm
|
|||||||
|
Gross Weight
|
680 kg
|
|||||||
|
Max load
|
660 kg
|
|||||||
|
Min. Turning radius
|
4 .5m
|
|||||||
|
Max speed
|
30 km/h (40 km/h available)
|
|||||||
|
Range
|
>100km
|
|||||||
|
Climbing ability
|
30 % grade (full capacity)
|
|||||||
|
Front/rear tread
|
1320/1190 mm
|
|||||||
|
Min.Ground clearance
|
170mm
|
|||||||
|
Body and frame
|
||||||||
|
Car body
|
Steel cargo
|
|||||||
|
Chassis
|
Super strong steel alloy frame
|
|||||||
|
Roof
|
Canvas
|
|||||||
|
Floor
|
Non- Slip Plastic carpet
|
|||||||
|
Dashboard
|
Dash Board with Speedometer, Battery
Capacity Meter, Electronic lock switch etc.
|
|||||||
|
Seat
|
2 artificial leather seats
|
|||||||
|
Lights and signal
|
LED：headlights, turn lights, taillights,
brake lights, electric horn and reversing buzzer
|
|||||||
|
Steering and Suspension
|
||||||||
|
Steering system
|
Single-stage rack and pinion steering system,
automatic rocker compensating function
|
|||||||
|
Brake system
|
Mechanical brake，
front: Disc Brake/rear: Drum brake
|
|||||||
|
Accelerator
|
Stepless speed change
|
|||||||
|
Suspension system
|
Plate spring + cylinder hydraulic shock absorber
|
|||||||
|
Driving mode
|
Rear axle two stage deceleration,
motor direct driving
|
|||||||
|
Wheel & Tyre
|

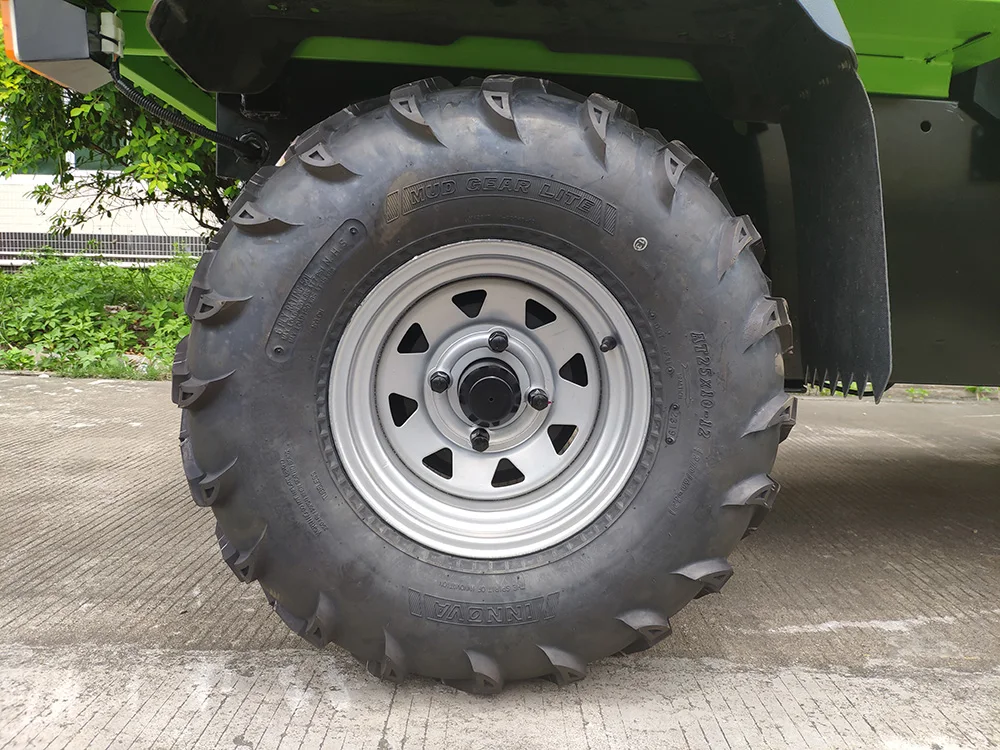

Front：22×9.5-10 rear：24×12-12
|
|||||||
Packing size (L*W*H) MM :2780*1500*1160
Port: Nansha China
Our products are also exported to the United States, Switzerland, Italy, Malaysia, Egypt, the United Arab Emirates, Mexico, Cuba and other Asian, African, European and American countries, and are highly praised by users and channel dealers; The chiefs of the Middle East and the royal nobles of Switzerland and Hungary are senior users of our products. Our products have also been purchased for the Tokyo Olympic Games in Japan.
We have completed independent intellectual property rights to our products. In addition to existing models, customers can also have their own customized personalized products. Welcome all friends and partners around world, we would provide best, reliable, toughed products and full weather service.
A:We are factory in Guangzhou City, Guangdong Province,China.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3.what can you buy from us?
electric vehicle, electric golf cart, electric classic car, electric utility car, electric motorcycle
Q4. why should you buy from us not from other suppliers?
Rariro (Guangzhou) Vehicle Co., Ltd. was established in March 2009. It is a high-tech enterprise integrating R&D, production and sales of high-power new energy motorcycles and new energy four-wheel tracked vehicles. Has more than ten years of research and d
Q5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD, EUR, JPY;
Accepted Payment Type: T/T,L/C, Western Union;
Language Spoken: English, Chinese, Spanish, French
Q6:What kind of certificate you have accredited ?
A:ISO9001 Certification, CE Certification. Manufacture license of special equipment and ERP Intra Program Management.
Q7:Do you accept customized products?
A:yes, we can make the customized products as per your drawings and other requirements including OEM
Q8:How long is for the lead time of the product?
A: Generally within 15 -20 days after receipt of the deposit.
Q9:How about the trading term and payment term?
A:We can accept FOB or CIF,T/T and L/C at sight payment
Q10:How about the warranty term and post service
A:one year warranty, offer FOC components by EXW cost shipped term, full weather post service .
